Details
Application: Truck
Order No.: 78911
Weight: 5.80 kg
Material Of Piston: Steel
Remarks: Replaces 75812
Cross references
Airfren: 2045712CM
Airtech No.: 137642
Airtech Ref.: 34571 C
Firestone No.: W01M588546
Firestone Bellows No.: 1T15UR SERIES C01M588546
Phoenix: 1DF17A-2

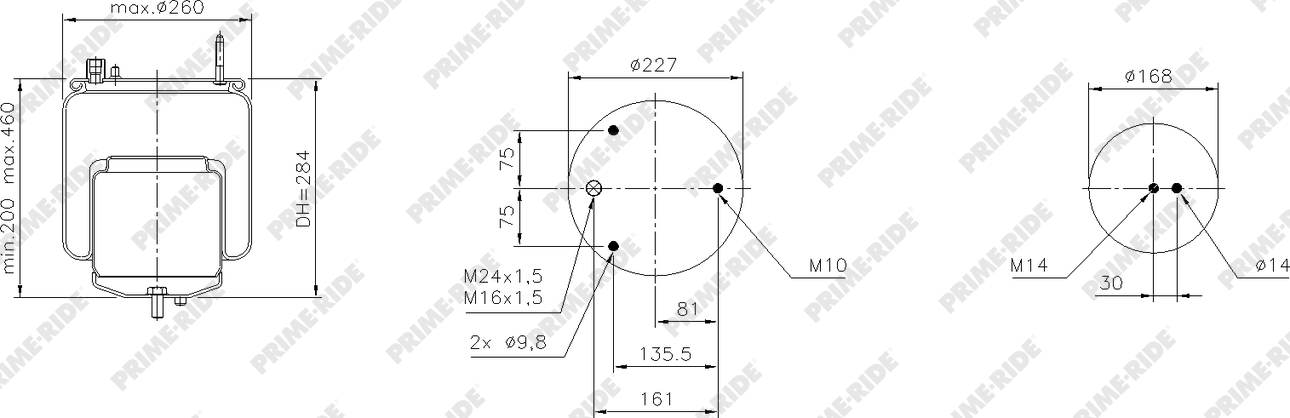

Prime-Ride New: 1R10719
Prime-Ride New Flex No.: 566203507
Vigor: 1V4571
Vigor Bellows No.: 0A4571

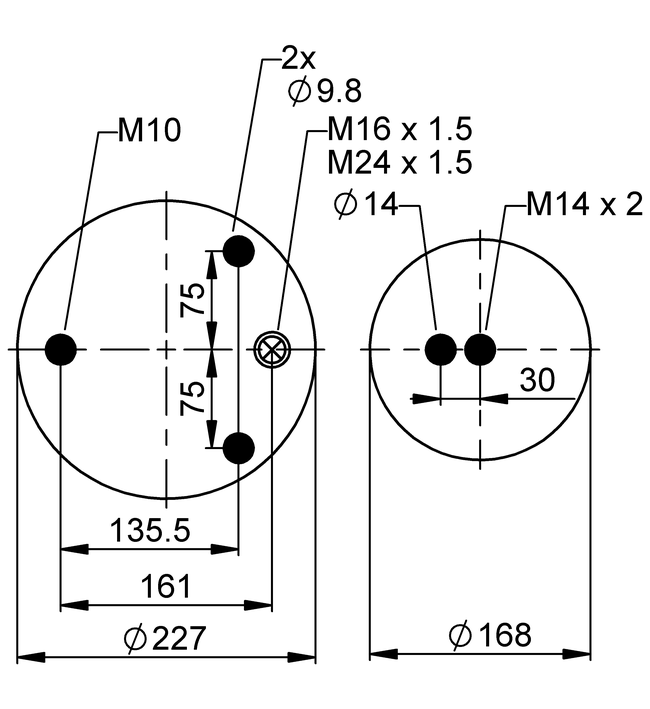

Torques
M10: max. 40 Nm
M14: max. 120 Nm
M16x1.5: max. 20 Nm
M24x1.5: max. 60 Nm
Original parts
Volvo
Application: Truck
Model: FM / FH medium
OE No.: 22056630
Volvo
Application: Truck
Model: FM / FH medium
OE No.: 21224750
Volvo
Application: Truck
Model: FM / FH medium
OE No.: 21224750
Volvo
Application: Truck
Model: FM / FH medium
OE No.: 22056630
Download
4571_N_P02.pdf
