FD 76-14 DI G1/2 CR

Details
Application: Industrial equipment
Order No.: 69838
Weight: 1.8 kg

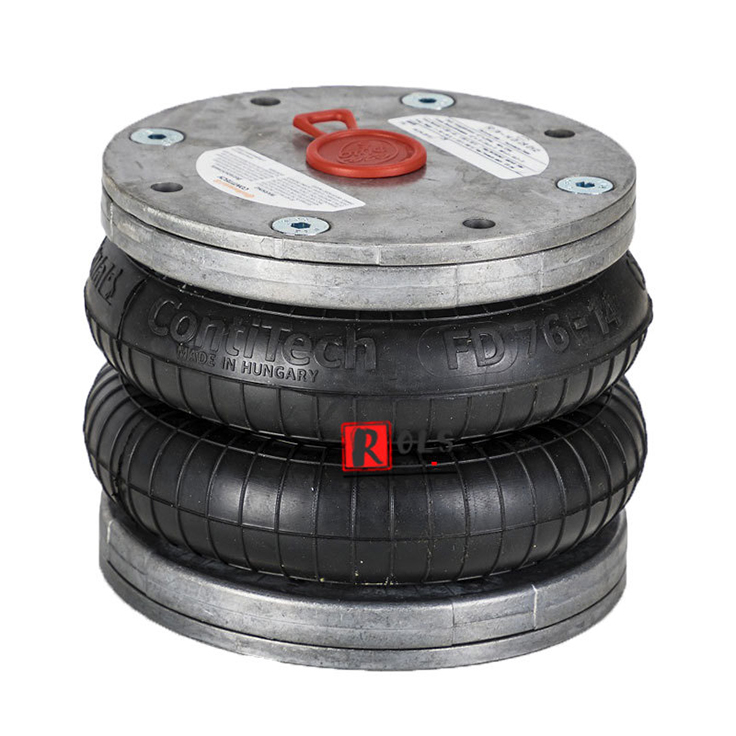

Remarks: CR-Rubber bellows, with dismountable aluminium plates, G1/2 air inlet
Cross references
Dunlop FR (Springride): SP1629 (COMPOSITE)
Dunlop FR (Springride) Bellows: 6″ x 2
Dunlop FR (Springride): SP2921 (ALUMINIUM)
Dunlop FR (Springride) Bellows: 6″ x 2
Dunlop UK (Pneuride): A31330B201
Dunlop UK (Pneuride) Bellows: 6″x2
Norgren: TPM/31062
Parker: 9109201A
Parker Type: 6×2
Pneumatis: DB0629B
Pneumatis Bellows: 6″x2
Sopra: DB 0629B
Sopra Type: 6″x2
Torques

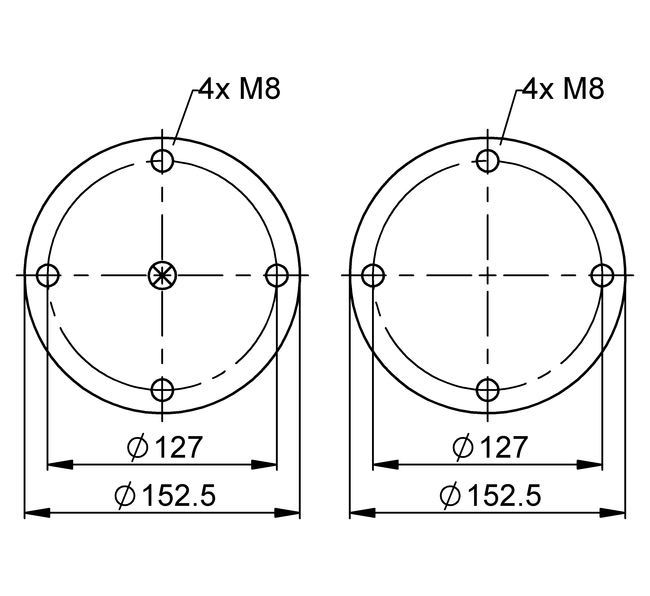

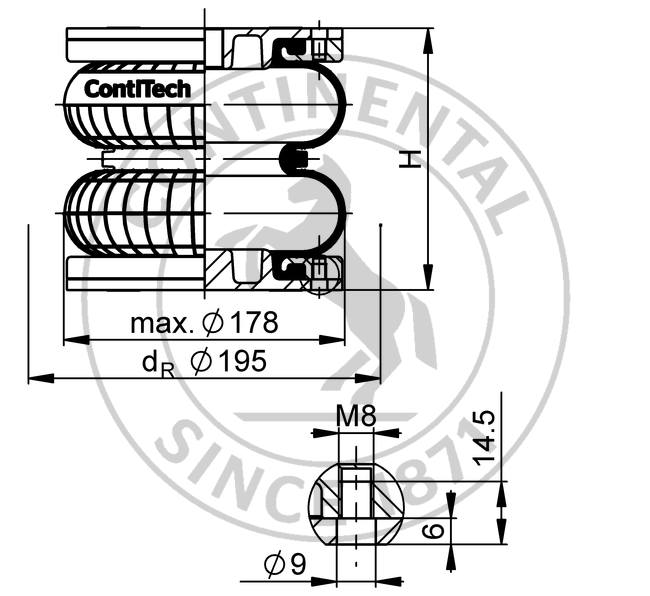

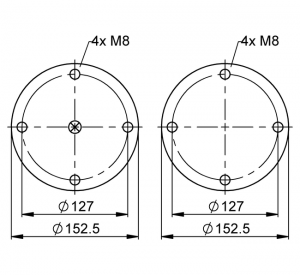

M8: max. 12 Nm
G1/2: max. 25 Nm
Original parts
–
Download
FD_76-14_DI_CR_CN.pdf
FD_76-14_DI_CR_GB.pdf
FD_76-14_DI_CR_DE.pdf

分类： 标签： , , , , , , ,

描述

详情
应用: 工业设备
订货编号: 69838
重量: 1.8 kg
备注: CR 橡胶气囊，带可拆卸铝板，G1/2 进气口
相互参照
Dunlop FR (Springride): SP1629 (COMPOSITE)
Dunlop FR (Springride) Bellows: 6″ x 2
Dunlop FR (Springride): SP2921 (ALUMINIUM)
Dunlop FR (Springride) Bellows: 6″ x 2
Dunlop UK (Pneuride): A 3 1330 B2 01
Dunlop UK (Pneuride) Bellows: 6″ x 2
Norgren: TPM/31062
Parker: 9 109 201A
Parker Type: 6 x 2
Pneumatis: DB0629B
Pneumatis Bellows: 6″ x 2
Sopra: DB-0629B
Sopra Type: 6″ x 2
扭矩
M8: max. 12 Nm
G1/2: max. 25 Nm
原始部件
–
下载
FD_76-14_DI_CR_CN.pdf
FD_76-14_DI_CR_GB.pdf
FD_76-14_DI_CR_DE.pdf
