Details
Application: Industrial equipment
Order No.: 62404
Weight: 2.00 kg

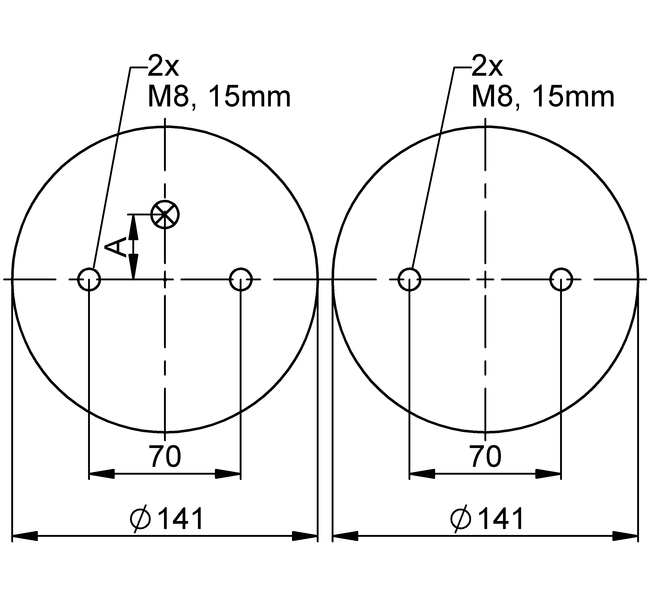

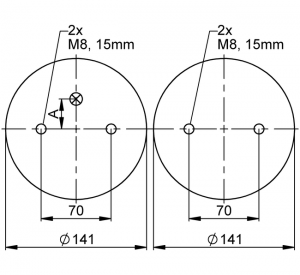

Remarks: With crimped plates, G1/4 air inlet, A = 0 mm excentrical
Cross references
Airkraft Order No.: 111005
Airkraft Style: 1B190
Bosch: 1923081000
ContiTech: FS120-10 1/4 M8
Enidine: YI1B8850
Enidine Bellows No.: 578 913 530
Firestone No.: W01M586166
Firestone Bellows No.: 116 [CN / GB]
Firestone New Bellows No.: 116B
Dunlop FR: S08100
Dunlop FR Bellows: 8″ x 1
Goodyear: 1B8-850
Goodyear Flex. No.: 579913530
Torpress Montcada: 0164245
Weforma: WBE310E1
Torques
M8: max. 25 Nm
G1/4: max. 25 Nm
Original parts
–
Download
FS_120-10_CI_CN.pdf
FS_120-10_CI_GB.pdf
FS_120-10_CI_DE.pdf
