Details
Application: Industrial equipment
Order No.: 60030
Weight: 2.3 kg

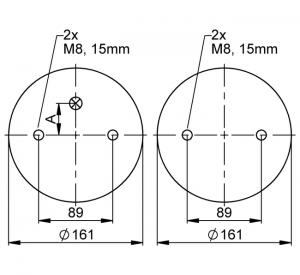

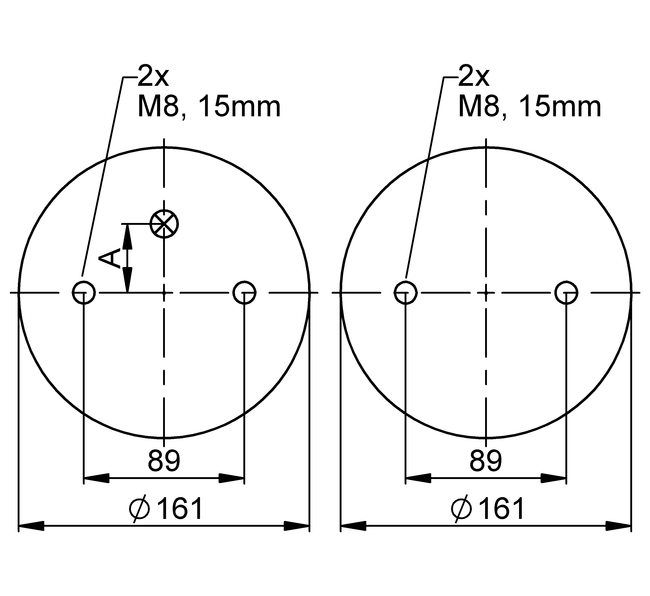

Remarks: With crimped plates, G1/4 air inlet, A = 44.5 mm excentrical
Cross references
Bosch: 0822419009
ContiTech: FS200-10 1/4 M8
ContiTech Order No.: 60030
Firestone No.: W01M586375
Firestone Bellows No.: 115 [CN / GB]
Firestone New Bellows No.: 115B
Weforma: WBE400E2
Torques
M8: max. 25 Nm
G1/4: max. 25 Nm
Original parts
–
Download
FS_200-10_CI_CN.pdf
FS_200-10_CI_GB.pdf
FS_200-10_CI_DE.pdf
详情
应用: 工业设备
订货编号: 60030
重量: 2.3 kg
备注: 带凸缘板，G1/4 进气孔，A = 44.5 mm 偏心
相互参照
Bosch: 0822419009
ContiTech: FS 200-10 1/4 M8
ContiTech Order No.: 60030
Firestone No.: W01-M58-6375
Firestone Bellows No.: 115 [CN / GB]
Firestone New Bellows No.: 115B
Weforma: WBE 400-E2
扭矩
M8: max. 25 Nm
G1/4: max. 25 Nm
原始部件
–
下载
FS_200-10_CI_CN.pdf
FS_200-10_CI_GB.pdf
FS_200-10_CI_DE.pdf
评价
目前还没有评价
