Details
Application: Industrial equipment
Order No.: 70205
Weight: 0.71 kg

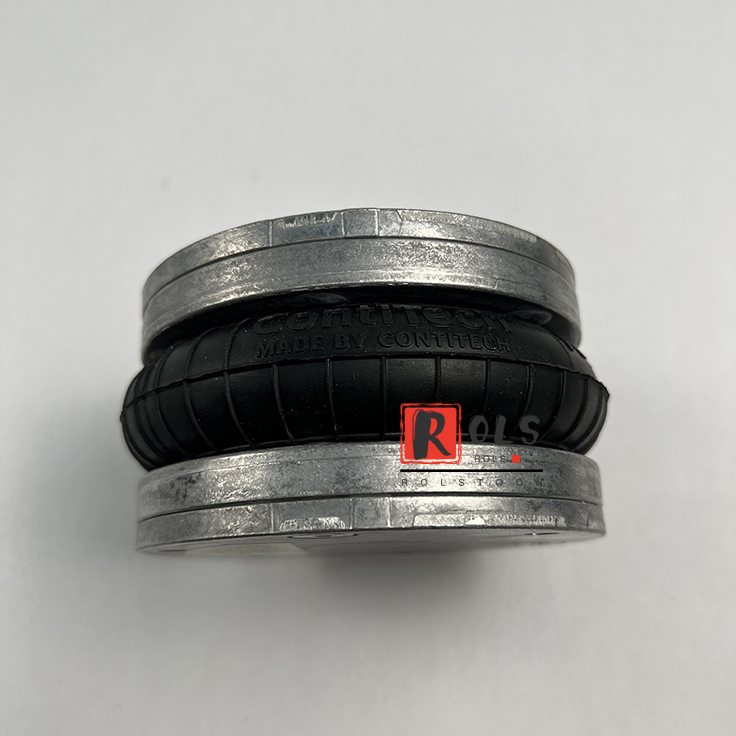

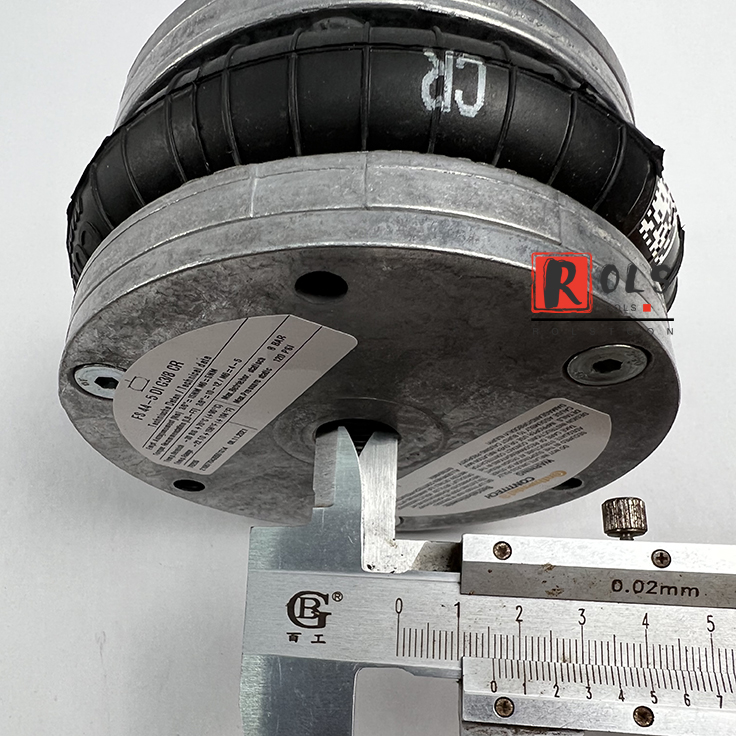

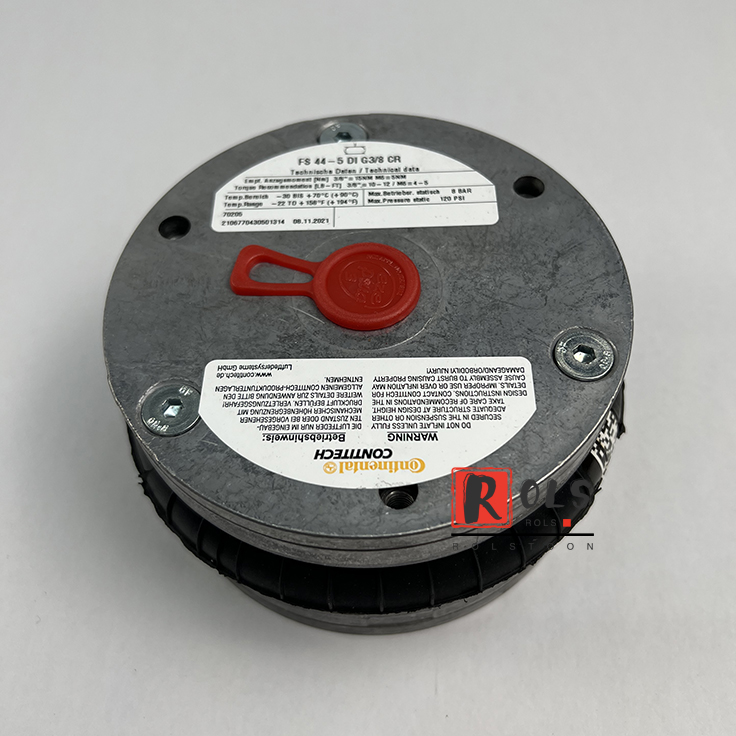

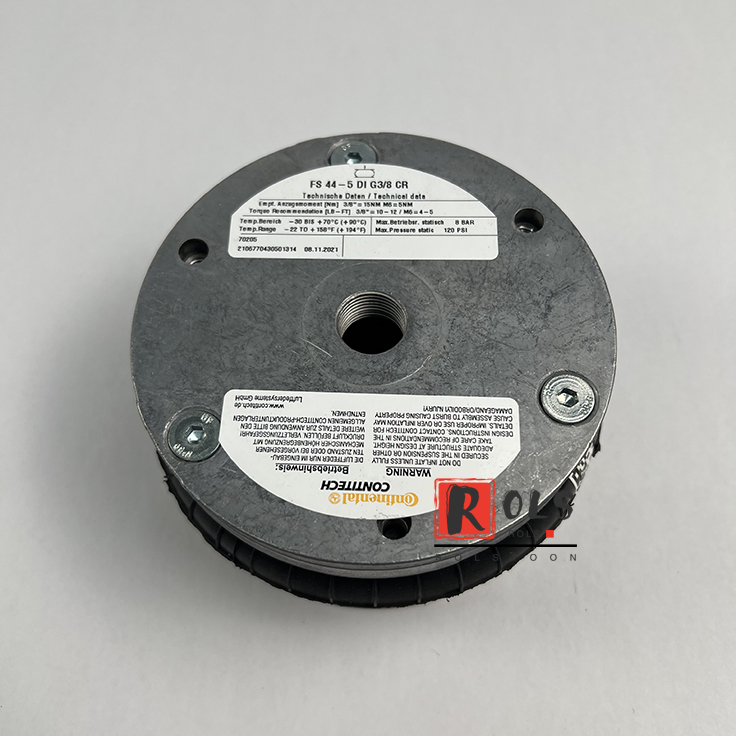

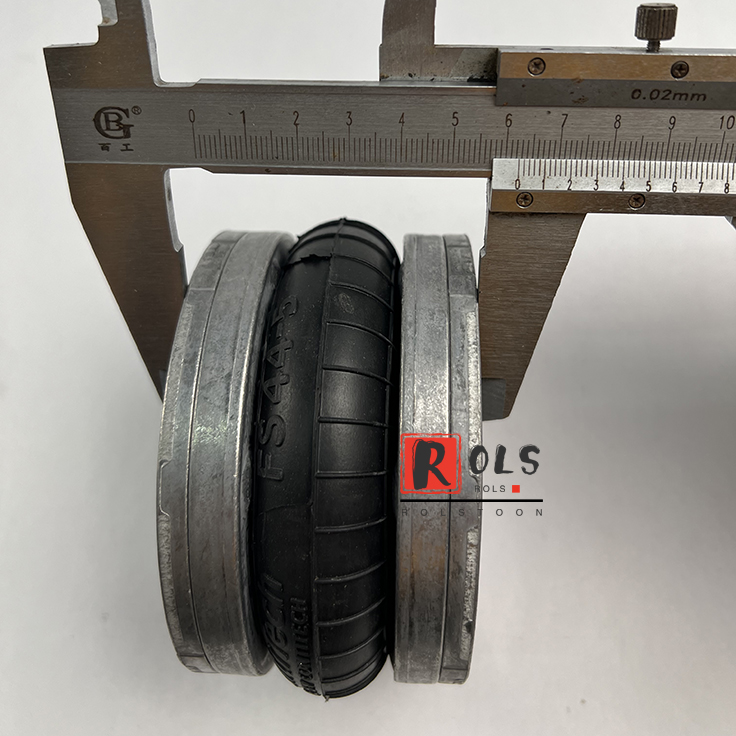

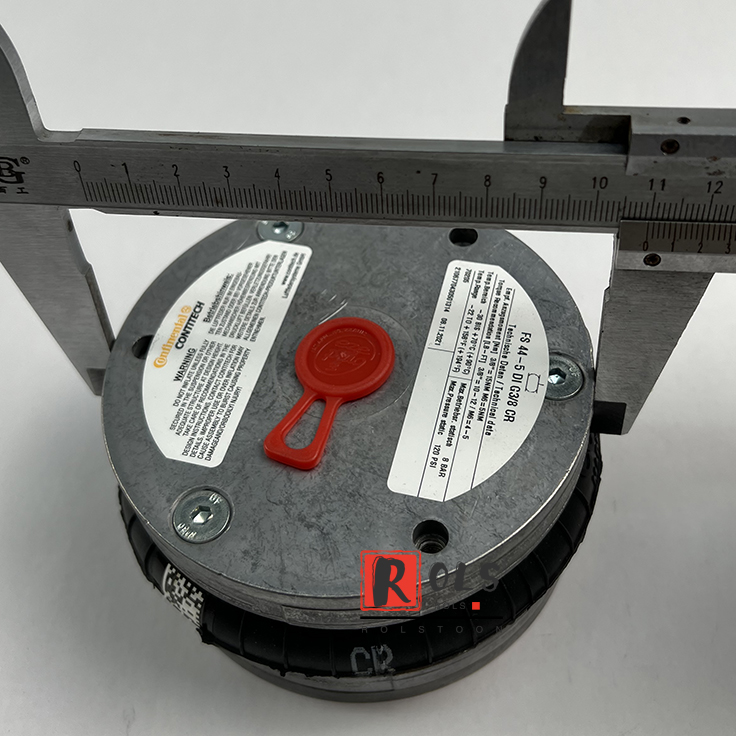

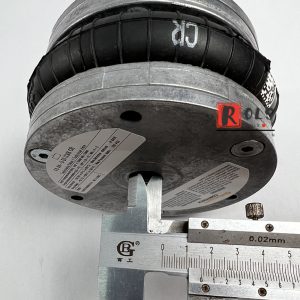

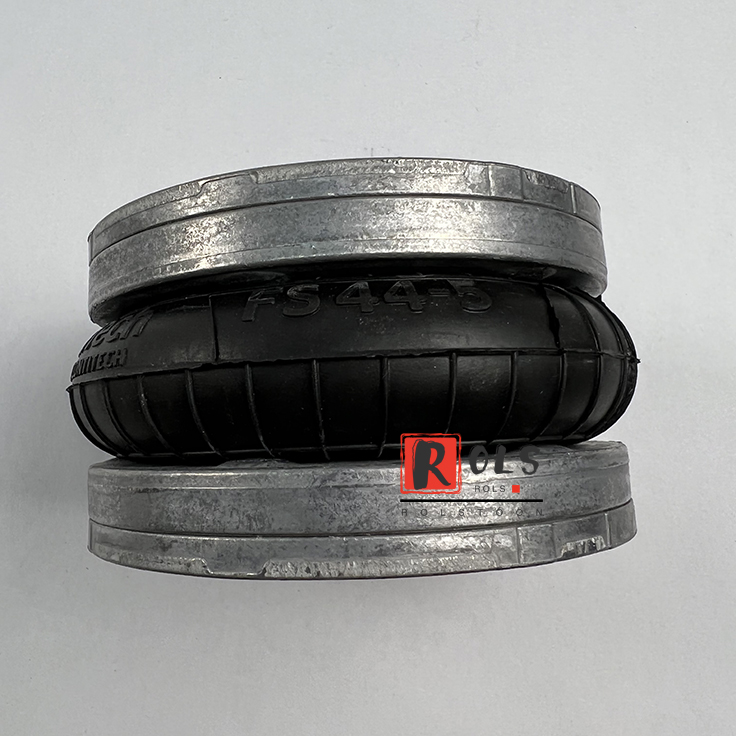

Remarks: CR-Rubber bellows, with dismountable aluminium plates, G3/8 air inlet
Cross references
Dunlop FR: SP2372
Dunlop FR Bellows: 4½” x 1
Dunlop UK: PNP30559B105
Dunlop UK Bellows: 4½” x 1
Norgren: TPM/31041
Parker: 9109500
Parker Type: 4.1/2 x 1
Pneumatis: DB0413B
Pneumatis Bellows: 4½” x 1
Sopra: DB-0413B
Sopra Type: 4½” x 1
Trelleborg Rubena: 4 1/2″ x 1 CR
Torques

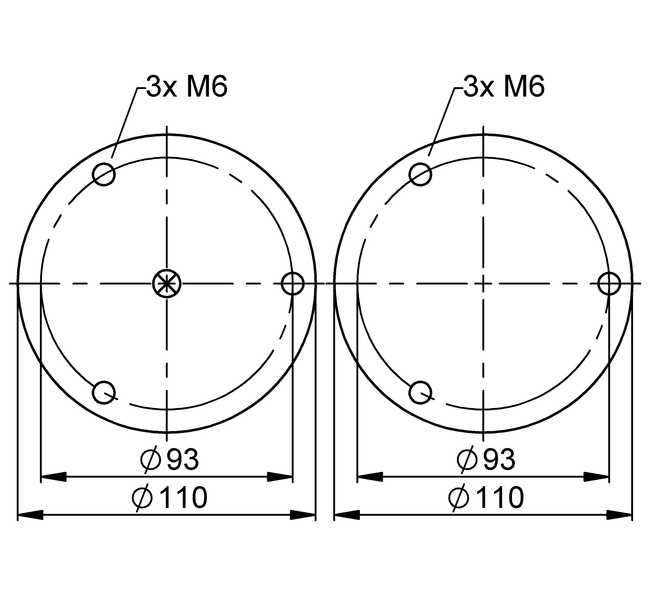

M6: max. 5 Nm
G3/8: max. 15 Nm
Original parts
–
Download
FS_44-5_DI_CR_CN.pdf
FS_44-5_DI_CR_GB.pdf
FS_44-5_DI_CR_DE.pdf
详情
应用: 工业设备
订货编号: 70205
重量: 0.71 kg
备注: CR 橡胶气囊，带可拆卸铝板，G3/8 进气孔
相互参照
Dunlop FR: SP2372
Dunlop FR Bellows: 4½” x 1
Dunlop UK: PNP 30559 B1 05
Dunlop UK Bellows: 4½” x 1
Norgren: TPM/31041
Parker: 9 109 500
Parker Type: 4.1/2 x 1
Pneumatis: DB0413B
Pneumatis Bellows: 4½” x 1
Sopra: DB-0413B
Sopra Type: 4½” x 1
Trelleborg Rubena: 4 1/2″ x 1 CR
扭矩
M6: max. 5 Nm
G3/8: max. 15 Nm
原始部件
–
下载
FS_44-5_DI_CR_CN.pdf
FS_44-5_DI_CR_GB.pdf
FS_44-5_DI_CR_DE.pdf
