Details
Application: Industrial equipment
Order No.: 61388
Weight: 1.2 kg

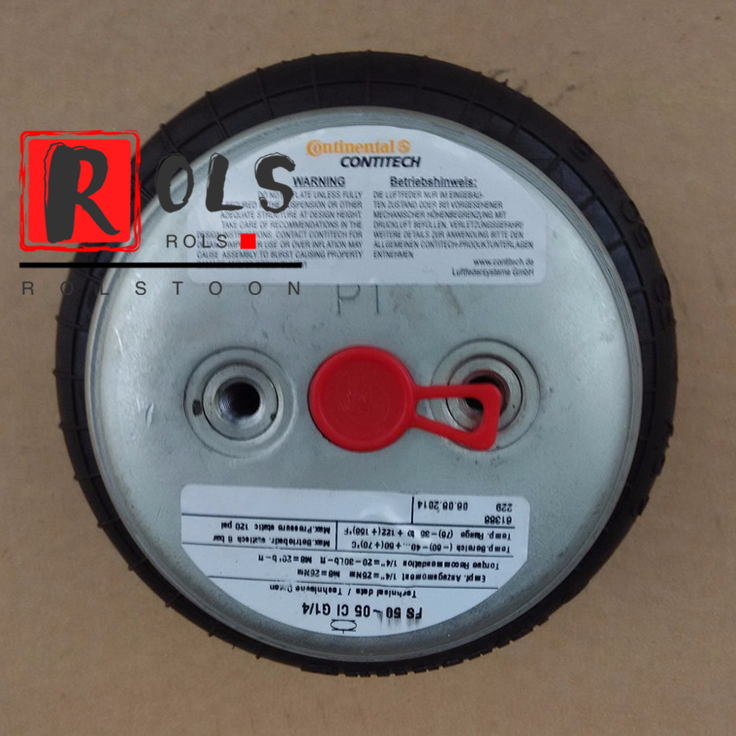

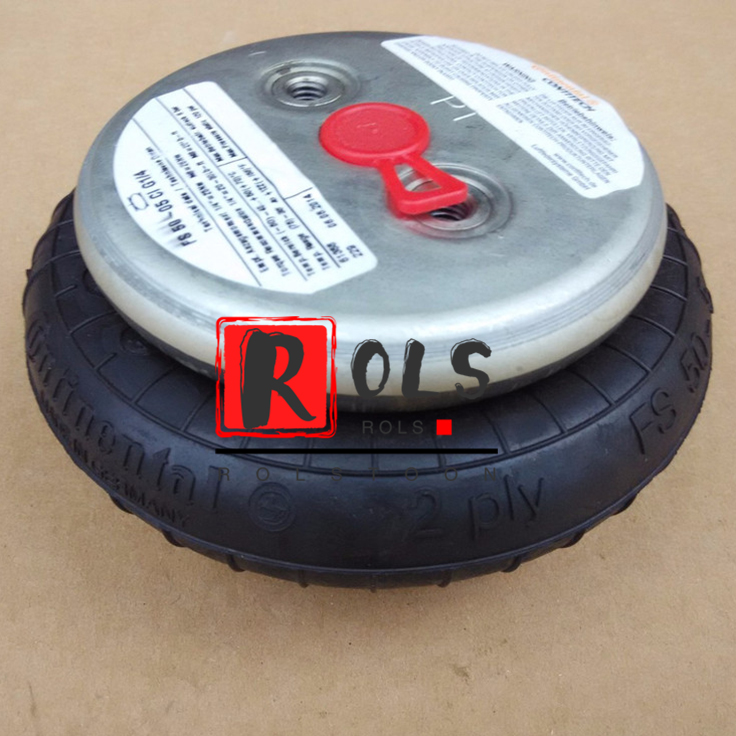

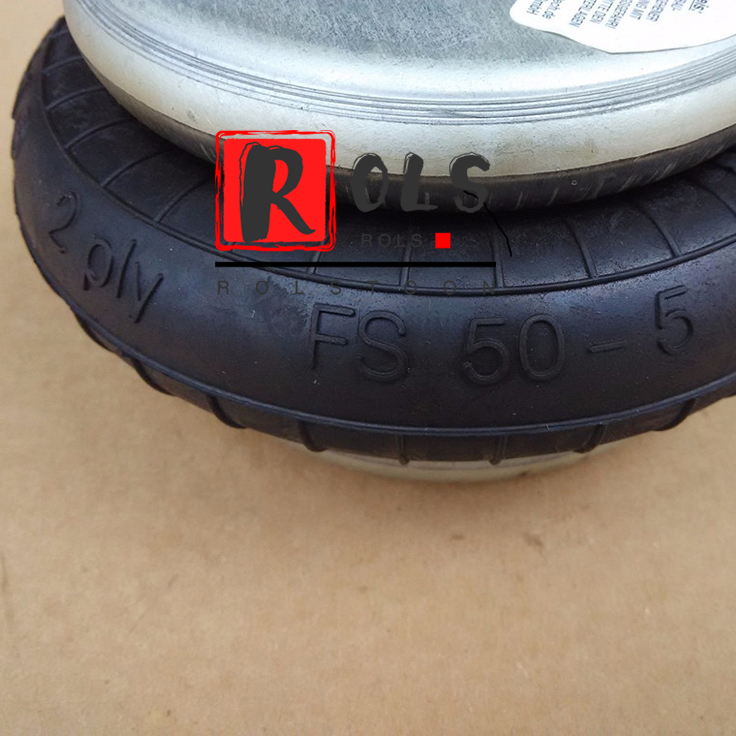

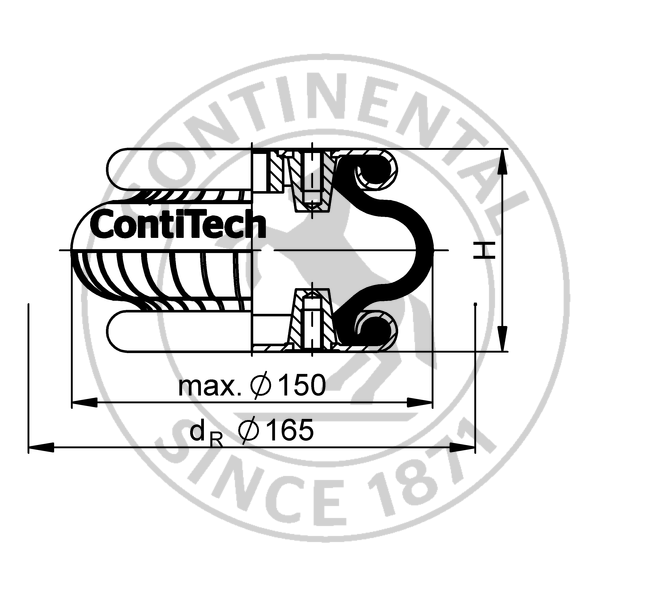

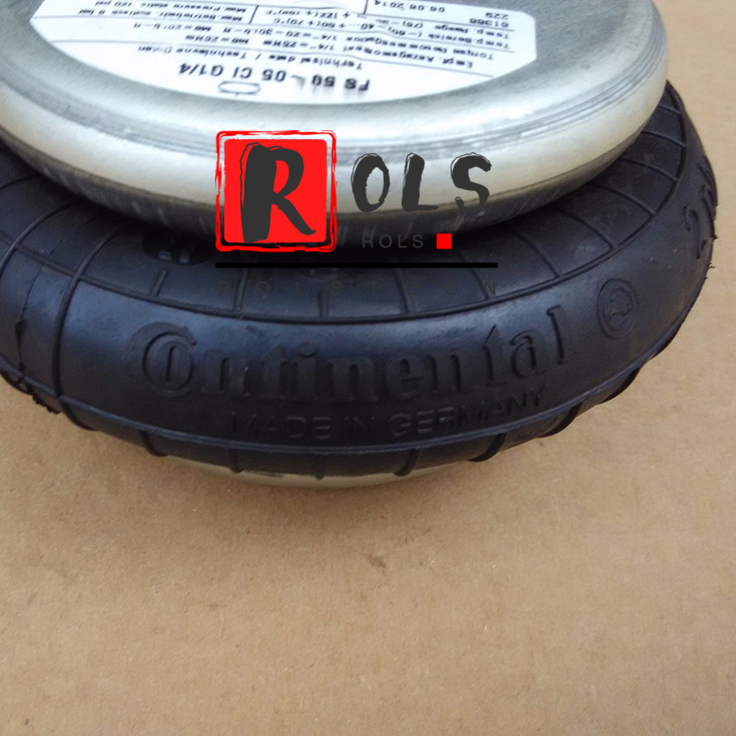

Remarks: Natural rubber (NR) bellows, with stainless steel crimped plates, G1/4 air inlet, A = 0 mm excentrical
Cross references
Bosch: 1915041000
Firestone No.: W01M586140
Firestone Bellows No.: 16 [CN / GB]
Firestone New Bellows No.: 16B
Goodyear: 1B5-810
Goodyear Flex No.: 579-91-3-500
WASSTECH: 1R-120 941001
Weforma: WBE150-E1

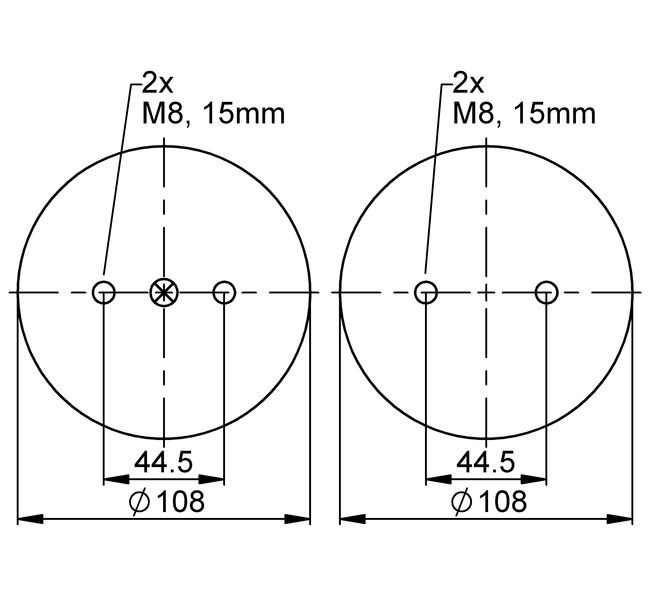

Torques
M8: max. 25 Nm
G1/4: max. 25 Nm
Original parts
–
Download
FS_50-5_CI_CN.pdf
FS_50-5_CI_GB.pdf
FS_50-5_CI_DE.pdf
详情
应用: 工业设备
订货编号: 61388
重量: 1.2 kg
备注: 天然橡胶（NR）气囊，带凸缘板，G1/4 进气孔，A = 0 mm 偏心
相互参照
Bosch: 1915041000
Firestone No.: W01-M58-6140
Firestone Bellows No.: 16 [CN / GB]
Firestone New Bellows No.: 16B
Goodyear: 1B5-810
Goodyear Flex No.: 579-913-500
WASSTECH: 1R – 120 941001
Weforma: WBE 150-E1
扭矩
M8: max. 25 Nm
G1/4: max. 25 Nm
原始部件
–
下载
FS_50-5_CI_CN.pdf
FS_50-5_CI_GB.pdf
FS_50-5_CI_DE.pdf
