Details
Application: Driver’s Seat / Industrial Equipment
Order No.: 63235
Weight: 0.28 kg

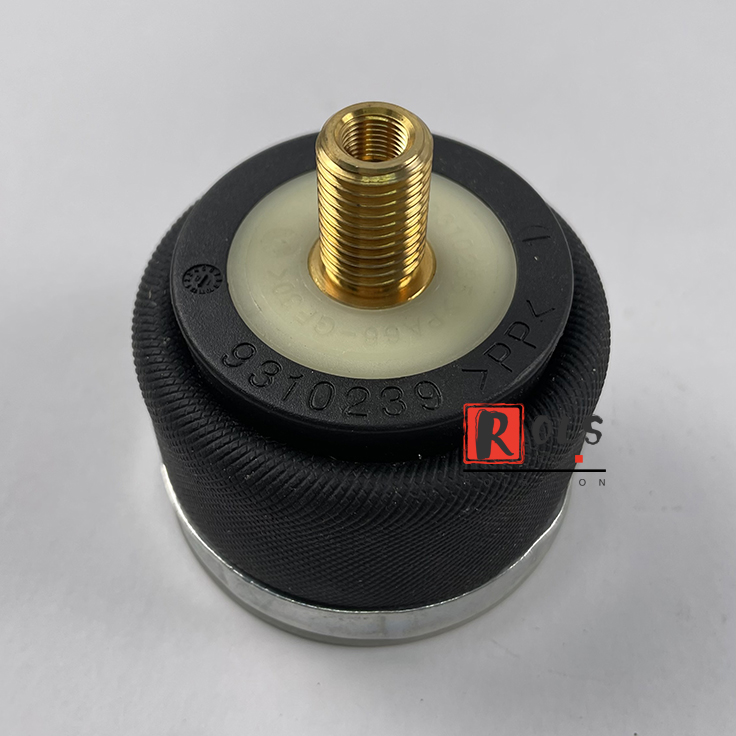

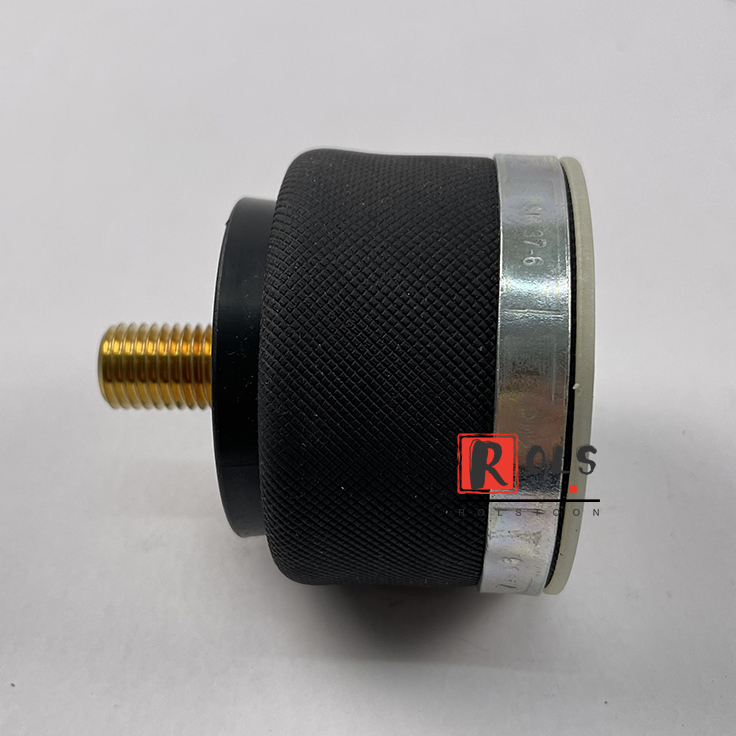

Remarks: CR-Rubber bellows, with brass stud, G1/8 air inlet, A = 0 mm excentrical
Cross references
Enidine: YM-SK37-6-3250
Firestone No.: W02M583001
Firestone Bellows No.: 1M1A0 [CN / GB]

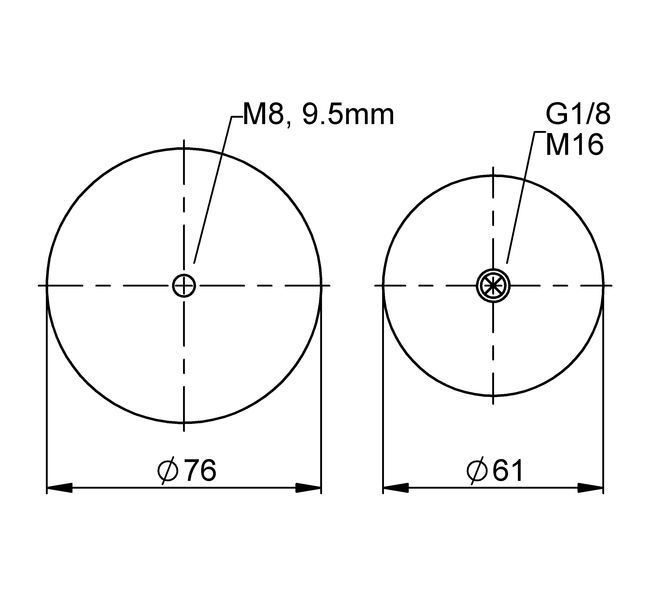

Torques
M16: max. 14 Nm
M8: max. 5 Nm
G1/8: max. 25 Nm
Original parts
–
Download
SK_37-6_P02_CN.pdf
SK_37-6_P02_GB.pdf
SK_37-6_P02_DE.pdf
详情
应用: 司机座椅、工业设备
订货编号: 63235
活塞编号：9310239
重量: 0.28 kg
备注：CR 橡胶气囊，带黄铜管接头, G1/8 进气孔，A = 0 mm 偏心
相互参照
Enidine: YM SK 37-6-3250
Firestone No.: W02-M58-3001
Firestone Bellows No.: 1M1A-0 [CN / GB]
扭矩
M16: max. 14 Nm
M8: max. 5 Nm
G1/8: max. 25 Nm
原始部件
–
下载
SK_37-6_P02_CN.pdf
SK_37-6_P02_GB.pdf
SK_37-6_P02_DE.pdf
