Details
Application: Industrial equipment
Order No.: W01M586140
Bellows No.: 16
New Bellows No.: 16B
Weight: 1.13 kg

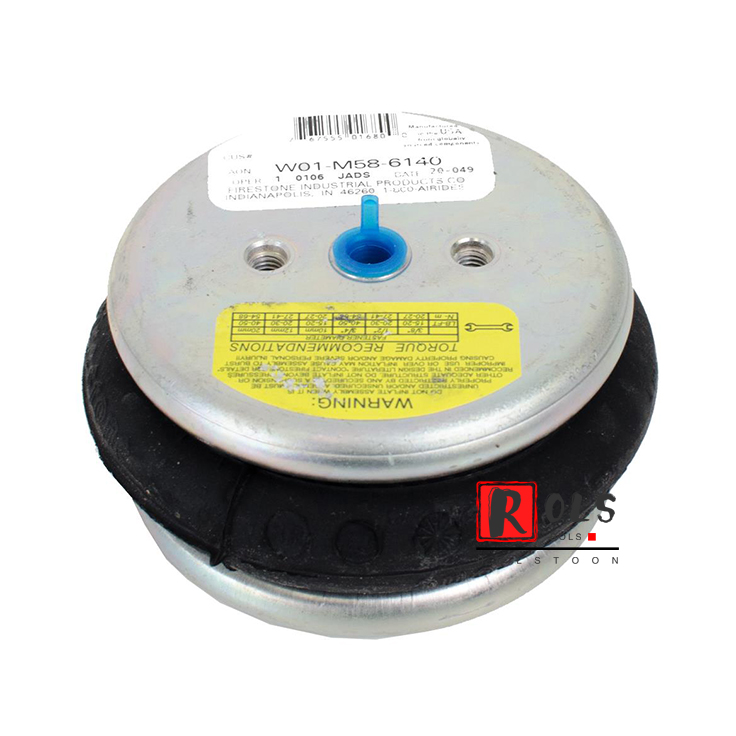

Remarks: All natural rubber bellows, with crimped plates, Blind nuts, 1/4 BSP gas thread (air inlet)
Cross references
Bosch: 1915041000
ContiTech: FS50-5 1/4 M8
ContiTech Order No.: 61388
ContiTech: FS50-5CI G1/4 [CN / GB / DE]
ContiTech Order No.: 61388
Enidine: YI 1B5 810
Enidine Bellows No.: 579 913 500
Goodyear: 1B5810
Goodyear Flex No.: 579913500
WASSTECH: 1R-120 941001
Weforma: WBE150E1
Torques
M8: max. 25 Nm
1/4 BSP: max. 25 Nm
详情
应用: 工业设备
订货编号: W01-M58-6140
皮囊编号: 16
新皮囊编号: 16B
重量: 1.13 kg
备注: 全天然橡胶气囊，带凸缘板，暗螺母，1/4 BSP 管螺纹（进气孔）
相互参照
Bosch: 1915041000
ContiTech: FS 50-5 1/4 M8
ContiTech Order No.: 61388
ContiTech: FS 50-5 CI G1/4 [CN / GB / DE]
ContiTech Order No.: 61388
Enidine: YI-1B5-810
Enidine Bellows No.: 579-913-500
Goodyear: 1B5-810
Goodyear Flex No.: 579-913-500
WASSTECH: 1R – 120 941001
Weforma: WBE 150-E1
扭矩
M8: max. 25 Nm
G1/4: max. 25 Nm
Original parts
–
下载
16_CN.pdf
16_GB.pdf
