Details
Application: –
Order No.: 2B8-850
Flex No.: 579-923-530
Weight: 2.4 kg
Cross references
ContiTech: FD 120-20 1/4 M8
ContiTech: FD 120-20 CI G1/4 [CN / GB / DE]
ContiTech Order No.: 62448
Enidine: YI-2B8-850
Firestone No.: W01-M58-6353
Firestone Bellows No.: 26 [CN / GB]
Firestone New Bellows No.: 26C
Torques
M8: max. 25 Nm
G1/4: max. 25 Nm
Original parts
–
Download

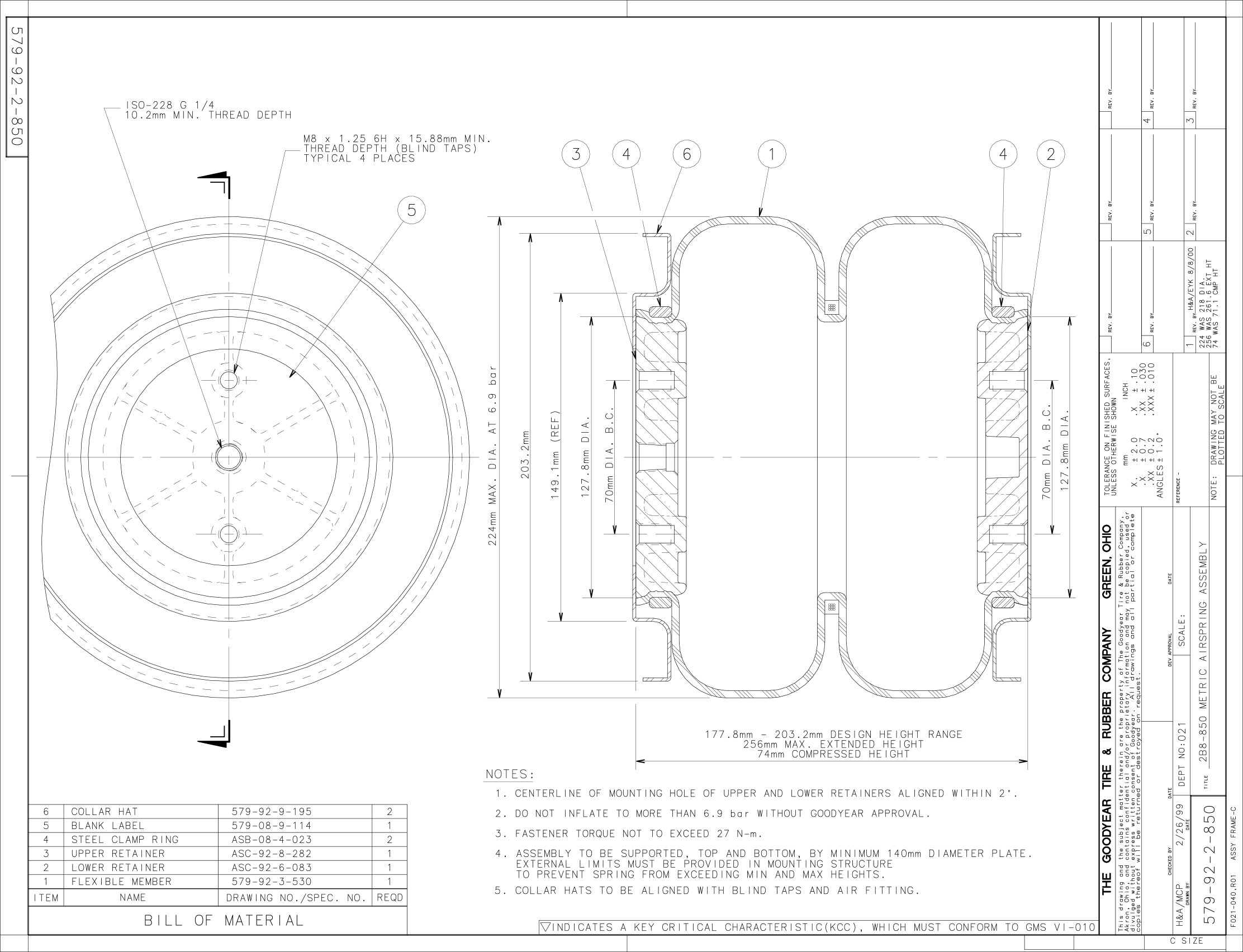

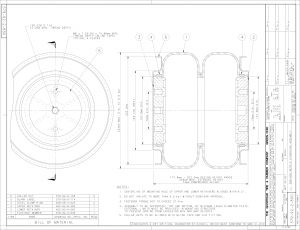

2B8-850.pdf
详情
应用: –
订货编号: 2B8-850
皮囊编号: 579-923-530
重量: 2.4 kg
备注：技术参数参见 2B8-550
相互参照
ContiTech: FD 120-20 1/4 M8
ContiTech: FD 120-20 CI G1/4 [CN / GB / DE]
ContiTech Order No.: 62448
Enidine: YI-2B8-850
Firestone No.: W01-M58-6353
Firestone Bellows #: 26 [CN / GB]
Firestone New Bellows #: 26C
扭矩
M8: max. 25 Nm
G1/4: max. 25 Nm
原始部件
–
下载
2B8-850.pdf
