Details
Application: Industrial equipment
Order No.: 62448
Weight: 2.30 kg

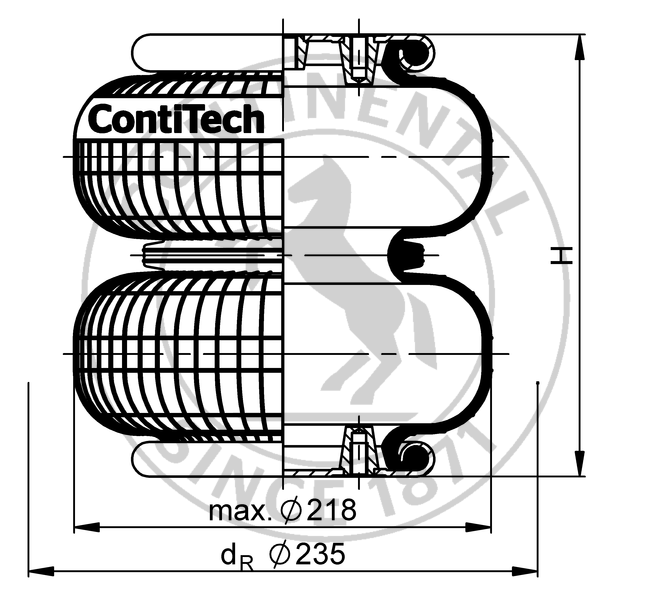

Remarks: Natural rubber (NR) bellows, with crimped plates, G1/4 air inlet, A = 0 mm excentrical
Cross references
ContiTech: FD120-20 1/4 M8
Enidine: YI 2B8 850
Firestone No.: W01M586353
Firestone Bellows No.: 26 [CN / GB]
Firestone New Bellows No.: 26C
Goodyear: 2B8850
Goodyear Flex No.: 579923530
Torques

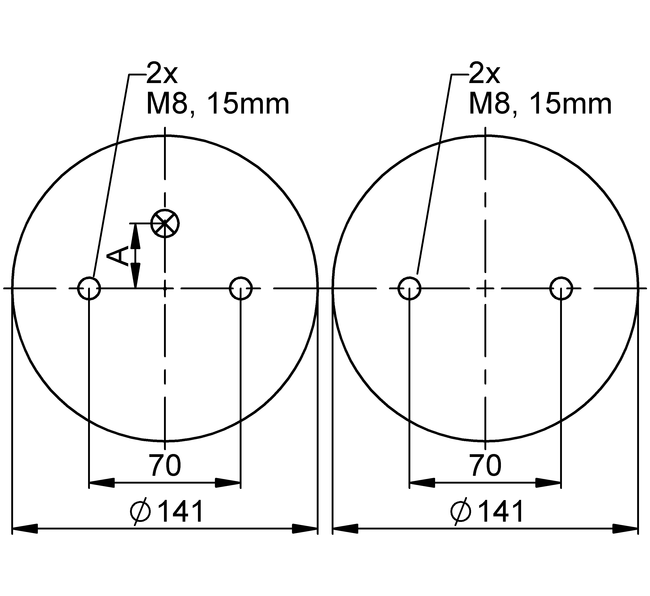

M8: max. 25 Nm
G1/4: max. 25 Nm
Original parts
–
Download
FD_120-20_CI_CN.pdf
FD_120-20_CI_GB.pdf
FD_120-20_CI_DE.pdf
详情
应用: 工业设备
订货编号: 62448
重量: 2.30 kg
备注: 天然橡胶（NR）气囊，带凸缘板，G1/4 进气孔，A = 0 mm 偏心
相互参照
ContiTech: FD 120-20 1/4 M8
Enidine: YI-2B8-850
Firestone No.: W01-M58-6353
Firestone Bellows No.: 26 [CN / GB]
Firestone New Bellows No.: 26C
Goodyear: 2B8-850
Goodyear Flex No.: 579-92-3-530
扭矩
M8: max. 25 Nm
G1/4: max. 25 Nm
原始部件
–
下载
FD_120-20_CI_CN.pdf
FD_120-20_CI_GB.pdf
FD_120-20_CI_DE.pdf
评价
目前还没有评价
