描述

详情
应用: 挂车/车轴
订货编号: 66505
重量: 3.9 kg
备注: 带可拆卸板，G1/2 进气孔
相互参照
Airkraft Order No.: 113060
Airkraft Style: 2B-200
Airtech No.: 140534
Airtech Ref.: A2 200/K01

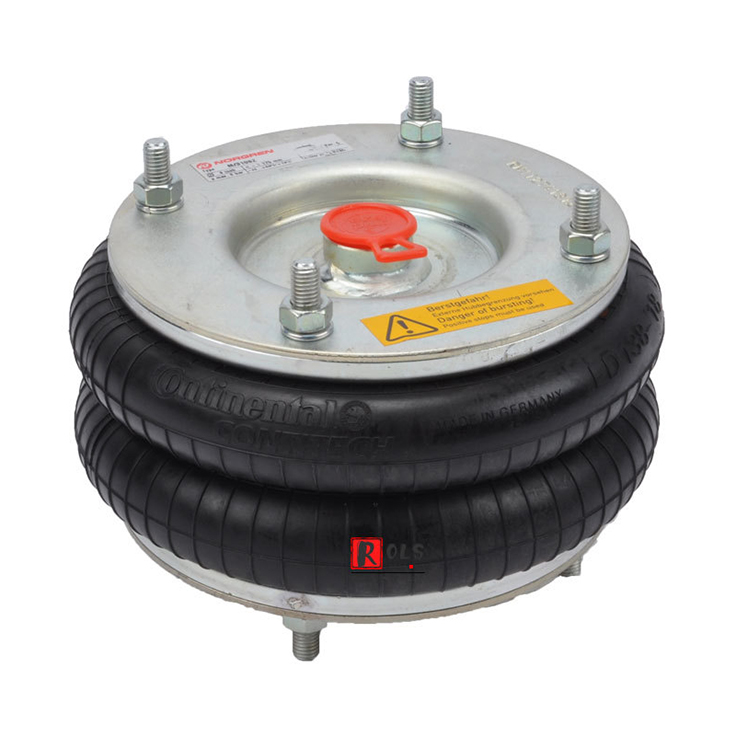

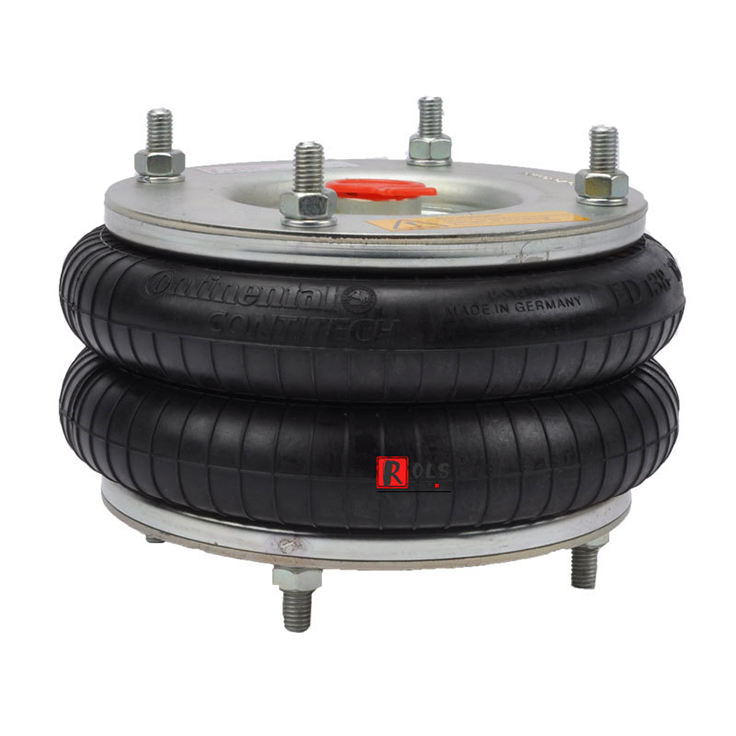

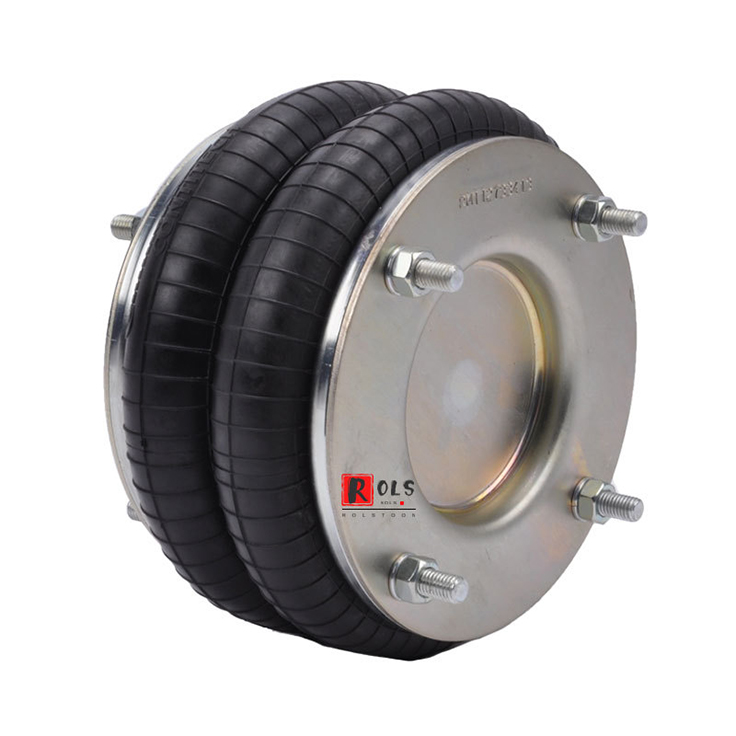

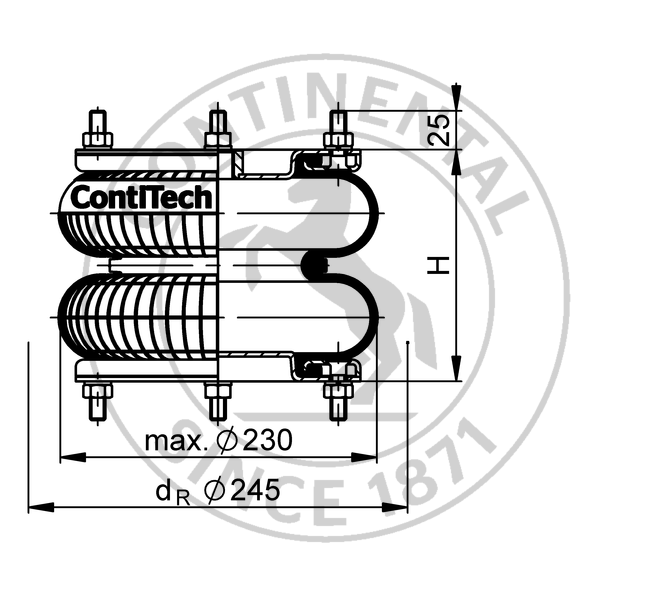

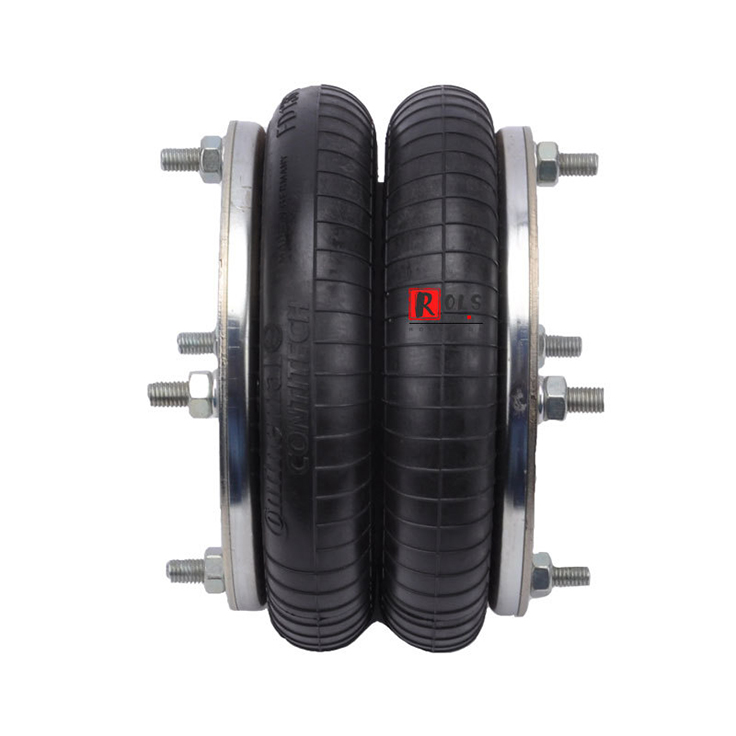

ContiTech: FD 138-18 1/2 M10
ContiTech: FD 138-18 1/2 M10
ContiTech Order No.: 66505
Dunlop FR: SP1490
Dunlop FR Bellows: 8″ x 2
Dunlop UK (Pneuride): PNP 30550 01 12
Dunlop UK (Pneuride) Bellows: 8″ x 2

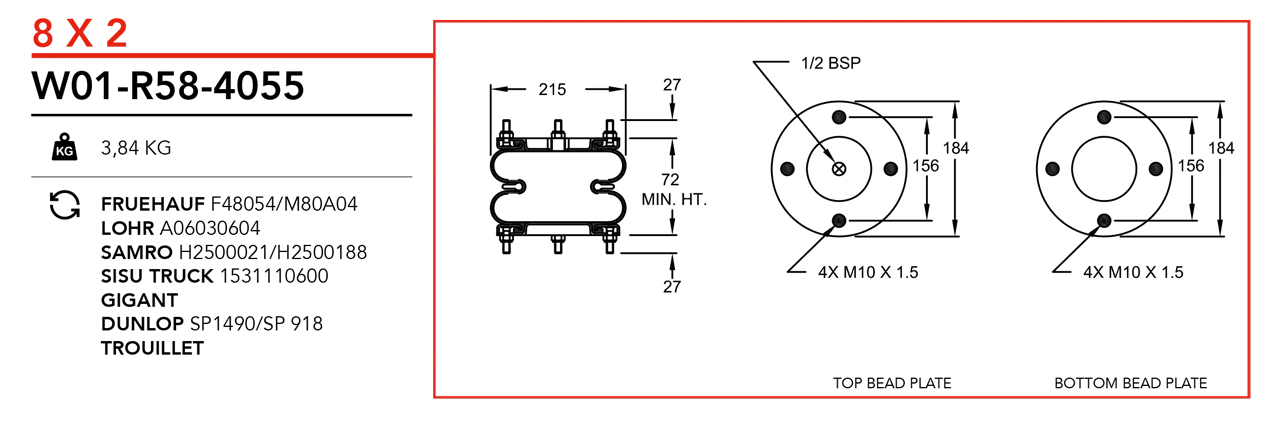

Firestone No.: W01-R58-4055
Firestone Bellows No.: 8×2
Goodyear: 2B8-2150
Goodyear Flex No.: 578-92-3-2150
Norgren: M/31082
Oria: 8 x 2
Parker: 9109011
Parker Type: 8 x 2
Pneumatis: DB0828
Pneumatis Bellows: 8″ x 2
Prime-Ride New: 2B8-2150
Prime-Ride New Flex No.: 578-92-3-2150
Sopra: DB-0828
Sopra Type: 8″ x 2
Springride: 2B8-2150
Springride Flex No.: 8″x2
Springride Flex: 578-92-3-2150
Trelleborg Rubena: 8″ x 2
Weforma: WBZ-G 350
扭矩

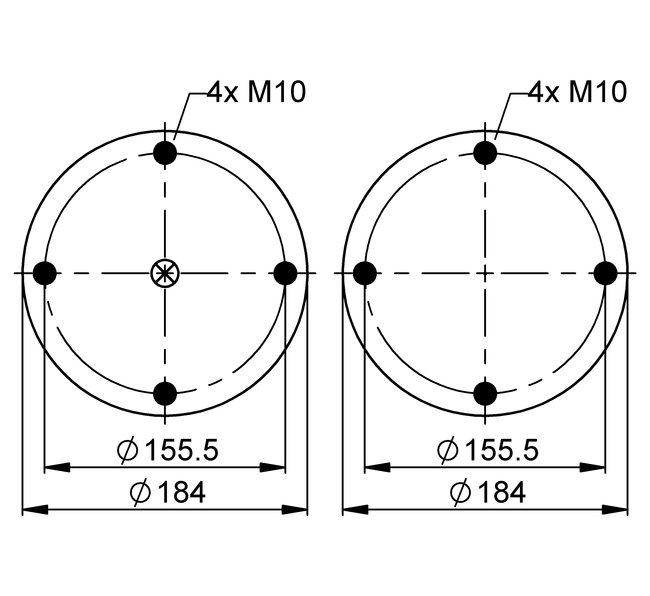

M10: max. 25 Nm
G1/2: max. 25 Nm
原始部件
Fruehauf
Applications: Trailer
Model: –
OE No.: F 48054
Fruehauf
Applications: Trailer
Model: –
OE No.: M 80A04
Granning
Applications: Trailer
Model: –
OE No.: 15803
Lohr
Applications: Trailer
Model: –
OE No.: A06030604
SAMRO
Applications: Trailer
Model: –
OE No.: H2500188
Gigant
Applications: –
Model: –
OE No.: –
Trouillet
Applications: –
Model: –
OE No.: –
下载
FD_138-18_DS_CN.pdf
FD_138-18_DS_GB.pdf
FD_138-18_DS_DE.pdf
